Building the Hack Computer: Study Notes

Boolean Logic

De Morgan’s Law

\[\overline{AB} = \overline{A} + \overline{B}\] \[\overline{A + B} = \overline{A}\,\overline{B}\]

Boolean Arithmetic (Combinational Logic)

Half Adder

Full Adder

Two’s Complement

Quick Flow

Decimal → (abs) → bin → invert → +1 → Two’s complement
Binary  → (MSB=1?) → invert → +1 → decimal → negative

Binary → Decimal

Concept

if MSB = 0 → positive
     normal binary value

if MSB = 1 → negative
     invert bits → add 1 → decimal → add minus sign


Example:

    11101100₂

    invert → 00010011
    +1     → 00010100 = 20
    → -20₁₀

Formula

\[\text{Range} = [-2^{n-1},\, 2^{n-1} - 1]\] \[\text{Decimal} = -b_{n-1} \times 2^{n-1} + \sum_{i=0}^{n-2} b_i \times 2^i\]

Example via Formula

Directly convert a binary number to decimal using the formula:

    11101100₂
    = -1×128 + (1×64 + 1×32 + 0×16 + 1×8 + 1×4 + 0×2 + 0×1)
    = -128 + 108
    = -20₁₀

Decimal → Binary

Concept

choose bit width (ex, 8 bits)

if positive:
    normal binary → pad zeros

if negative:
    abs(decimal) → binary → invert → add 1

Example:

    -20

    20  → 00010100
    inv → 11101011
    +1  → 11101100

Example: Positive via Long Division

Example, 20₁₀, target width 8 bits

          ┌─────────── remainder
      2 ) 20           r0
          10           r0
           5           r1
           2           r0
           1           r1
           0  stop

remainders bottom to top, 1 0 1 0 0  →  00010100

Example: Negative via Long Division

Example, -20₁₀, target width 8 bits

Step A, abs value long divide

          ┌─────────── remainder
      2 ) 20           r0
          10           r0
           5           r1
           2           r0
           1           r1
           0  stop

unsigned, 10100  → pad to width → 00010100

Step B, invert bits
00010100 → 11101011

Step C, add 1
11101011 + 1 → 11101100

Result, -20₁₀ → 11101100₂

4-bit Table

Decimal | Two’s Complement
--------------------------
   7    | 0111
   6    | 0110
   5    | 0101
   4    | 0100
   3    | 0011
   2    | 0010
   1    | 0001
   0    | 0000
  -1    | 1111
  -2    | 1110
  -3    | 1101
  -4    | 1100
  -5    | 1011
  -6    | 1010
  -7    | 1001
  -8    | 1000

Sequential Logic

DFF

Bit (1-bit register)

Computer Architecture

ALU

ALU Notes

• In two’s complement representation, the bitwise NOT operation $!y$ can be expressed as $!y = -y - 1$.

Assembly Language

Overview

The Hack assembly language contains two instruction types: A-instruction and C-instruction, plus labels for symbolic addresses. Each instruction is 16 bits long.

A-instruction

Form

@value
@symbol

Loads a constant or address into the A register. The value also becomes the memory address for M.

Example

@10
D=A
@counter
M=0

C-instruction

Form

dest=comp;jump

Performs computation and optionally stores or jumps.

• dest: target (M, D, A, MD, AM, AD, AMD)
• comp: computation (ALU operation)
• jump: condition (JGT, JEQ, JGE, JLT, JNE, JLE, JMP)

Example

D=M
D;JGT
0;JMP

Common comp Values

0, 1, -1
D, A, M, !D, !A, !M, -D, -A, -M
D+1, A+1, M+1, D-1, A-1, M-1
D+A, D+M, D-A, D-M, A-D, M-D
D&A, D&M, D|A, D|M

Labels and Symbols

Label Declaration

(LOOP)

Marks a location. The label’s value is the address of the next instruction.

Predefined Symbols

Symbol	Address	Meaning
SP	0	Stack pointer (top of the stack)
LCL	1	Base address of the local segment
ARG	2	Base address of the argument segment
THIS	3	Base address of the this segment
THAT	4	Base address of the that segment
R0–R15	0–15	General purpose registers, aliases for the first 16 RAM addresses
temp (R5–R12)	5–12	Fixed temporary segment, used for intermediate storage
pointer (THIS/THAT)	3–4	Pointer segment that maps to THIS (0) and THAT (1)
static (FileName.index)	16+	Static variables unique to each .vm file, starting from RAM[16]
SCREEN	16384	Base address of the screen memory (for display pixels)
KBD	24576	Address of the keyboard memory-mapped register

Variables (custom symbols) start from address 16.

Example Program: Sum 1+2+…+n

@i
M=0
@sum
M=0
(LOOP)
  @i
  D=M
  @n
  D=D-M
  @END
  D;JGT
  @i
  D=M
  @sum
  M=M+D
  @i
  M=M+1
  @LOOP
  0;JMP
(END)

Quick Reference

• @value: load A
• dest=comp;jump: compute and control flow
• Symbols: variables and labels
• Memory map: R0–R15, SCREEN(16384), KBD(24576)

ASM Notes

• First pass: Strip whitespace/comments, walk instructions to build the label table; each non-label command bumps the ROM address counter, while (LABEL) entries alias the next instruction line.
• Second pass: Revisit the cleaned instruction stream, resolve symbols (allocating RAM addresses from 16 upward for new variables), and emit the 16-bit Hack opcodes for every A- and C-instruction.

---

The following can be considered at the software level while the upper part is at the hardware level.

Virtual Machine Language

The VM language is a stack-based intermediate language that abstracts away hardware details. It describes computation using stack operations, memory access, branching, and function calls.

Stack and SP

The stack starts at address 256. The SP (Stack Pointer) always points to the next free slot.

• push writes to *SP, then SP = SP + 1
• pop decrements SP, then reads from *SP

// push D onto stack
@SP
A=M
M=D
@SP
M=M+1

// pop top of stack into D
@SP
AM=M-1
D=M

Memory Segments

VM Segment	Meaning	Assembly Base	Address Computation	Example
argument	Function arguments	ARG	A = M + index	push argument 2 → *(ARG + 2)
local	Local variables of the current function	LCL	A = M + index	pop local 0 → *(LCL + 0)
this	“this” pointer area	THIS	A = M + index	push this 1 → *(THIS + 1)
that	“that” pointer area	THAT	A = M + index	pop that 2 → *(THAT + 2)
temp	Temporary storage (RAM[5–12])	5	A = 5 + index	push temp 3 → @8
pointer	Stores THIS and THAT pointers (RAM[3–4])	3	A = 3 + index	pop pointer 0 → THIS = *(SP-1)
static	File-specific static variables	16	@FileName.index	push static 2 → @Foo.2
constant	Immediate values, not in RAM	—	D = A	push constant 7 → D = 7

Basic Syntax of VM Language

push constant i
push segment i
pop segment i
add | sub | neg | eq | gt | lt | and | or | not
label X
goto X
if-goto X
function f k
call f n
return

Translations from VM language to Assembly

The C++ VMTranslator writes structured templates for every VM command. Values destined for the stack are staged in D and finalised with the shared push tail:

@SP
AM=M+1
A=A-1
M=D

For pop commands targeting base-pointer segments, the absolute address is cached in R13 before the stack value is stored. The assembler snippets below use placeholders such as index and FunctionName that the translator substitutes at runtime.

push segment index

• push constant index

  @index
  D=A
  @SP
  AM=M+1
  A=A-1
  M=D


• push local|argument|this|that index

  @index
  D=A
  @SEG            // SEG ∈ {LCL, ARG, THIS, THAT}
  A=M+D
  D=M
  @SP
  AM=M+1
  A=A-1
  M=D


• push pointer 0|1

  @THIS|THAT
  D=M
  @SP
  AM=M+1
  A=A-1
  M=D


• push temp index

  @index
  D=A
  @5
  A=D+A
  D=M
  @SP
  AM=M+1
  A=A-1
  M=D


• push static index

  @index
  D=A
  @16
  A=D+A
  D=M
  @SP
  AM=M+1
  A=A-1
  M=D


pop segment index

• pop local|argument|this|that index

  @index
  D=A
  @SEG            // SEG ∈ {LCL, ARG, THIS, THAT}
  D=M+D
  @13
  M=D
  @SP
  AM=M-1
  D=M
  @13
  A=M
  M=D


• pop pointer 0

  @SP
  AM=M-1
  D=M
  @THIS
  M=D


• pop pointer 1

  @SP
  AM=M-1
  D=M
  @THAT
  M=D


• pop temp index

  @index
  D=A
  @5
  D=D+A
  @13
  M=D
  @SP
  AM=M-1
  D=M
  @13
  A=M
  M=D


• pop static index

  @index
  D=A
  @16
  D=D+A
  @13
  M=D
  @SP
  AM=M-1
  D=M
  @13
  A=M
  M=D


Arithmetic and logic

add

@SP
AM=M-1
D=M
A=A-1
M=M+D

sub

@SP
AM=M-1
D=M
A=A-1
M=M-D

neg

@SP
A=M-1
M=-M

and

@SP
AM=M-1
D=M
A=A-1
M=M&D

or

@SP
AM=M-1
D=M
A=A-1
M=M|D

not

@SP
A=M-1
M=!M

Comparisons

eq, gt, and lt share a helper that emits unique labels (CMP_TRUE0, CMP_END0, …). Example output for eq:

@SP
AM=M-1
D=M
@SP
AM=M-1
D=M-D
@CMP_TRUE0
D;JEQ
D=0
@CMP_END0
0;JMP
(CMP_TRUE0)
D=-1
(CMP_END0)
@SP
AM=M+1
A=A-1
M=D

gt substitutes JGT and lt uses JLT in the conditional jump.

Branching commands

• label X: (X)
• goto X:

  @X
  0;JMP


• if-goto X:

  @SP
  AM=M-1
  D=M
  @X
  D;JNE


Function commands

function FunctionName nLocals

(FunctionName)
@nLocals
D=A
@13
M=D
(FunctionName$initLocalsLoop)
@13
D=M
@FunctionName$initLocalsEnd
D;JEQ
@SP
AM=M+1
A=A-1
M=0
@13
M=M-1
@FunctionName$initLocalsLoop
0;JMP
(FunctionName$initLocalsEnd)

call FunctionName nArgs

@FunctionName$ret.0   // counter increments per call site
D=A
@SP
AM=M+1
A=A-1
M=D
@LCL
D=M
@SP
AM=M+1
A=A-1
M=D
@ARG
D=M
@SP
AM=M+1
A=A-1
M=D
@THIS
D=M
@SP
AM=M+1
A=A-1
M=D
@THAT
D=M
@SP
AM=M+1
A=A-1
M=D
@SP
D=M
@5
D=D-A
@nArgs
D=D-A
@ARG
M=D
@SP
D=M
@LCL
M=D
@FunctionName
0;JMP
(FunctionName$ret.0)

return

@LCL
D=M
@13
M=D              // frame = LCL
@5
A=D-A
D=M
@14
M=D              // ret = *(frame-5)
@SP
AM=M-1
D=M
@ARG
A=M
M=D              // *ARG = pop()
@ARG
D=M+1
@SP
M=D              // SP = ARG + 1
@13
AM=M-1
D=M
@THAT
M=D
@13
AM=M-1
D=M
@THIS
M=D
@13
AM=M-1
D=M
@ARG
M=D
@13
AM=M-1
D=M
@LCL
M=D
@14
A=M
0;JMP            // goto ret

R13 and R14 serve as the frame scratch space and cached return address.

Program Control

Subroutines & Functions

Stack Implementation

Call Implementation

Function Implementation

Return Implementation

Memory Architecture of the Hack Virtual Machine

The Hack Virtual Machine is implemented on a stack-based architecture. All function calls, arguments, and local variables are stored in the RAM. The CPU executes instructions fetched from the ROM, while the stack resides in RAM starting at address 256. The following diagram summarises the relationship between ROM, RAM, and the stack pointer segments.

                    ┌──────────────────────────────────────────┐
                    │                HACK CPU                  │
                    │──────────────────────────────────────────│
                    │  Registers:                              │
                    │   A  → Address register                  │
                    │   D  → Data register                     │
                    │   PC → Program counter                   │
                    │                                          │
                    │  Control signals: use A/D/PC to access   │
                    │  RAM or ROM                              │
                    └──────────────────────────────────────────┘
                                       │
                                       │ (A register provides address)
                                       ▼

    ┌───────────────────────────────────────────┐
    │                   ROM                     │
    │───────────────────────────────────────────│
    │ Stores machine code (.hack instructions)  │
    │ Loaded from compiled .asm file            │
    │ PC fetches sequentially                   │
    │ Read-only memory                          │
    └───────────────────────────────────────────┘
                                       │
                                       ▼
    ┌───────────────────────────────────────────┐
    │                   RAM                     │
    │───────────────────────────────────────────│
    │ Address range: 0 - 32767                  │
    │                                           │
    │ 0–15 : General-purpose registers          │
    │   ├─ R0  = SP    (Stack Pointer)          │
    │   ├─ R1  = LCL   (Local segment base)     │
    │   ├─ R2  = ARG   (Argument segment base)  │
    │   ├─ R3  = THIS  (This segment base)      │
    │   ├─ R4  = THAT  (That segment base)      │
    │   ├─ R5–R12 = Temp segment (8 slots)      │
    │   ├─ R13–R15 = General temporary registers│
    │                                           │
    │ 16–255 : Static variables (per file)      │
    │                                           │
    │ 256–2047 : Stack segment                  │
    │   ↑                                       │
    │   │ push → write at stack top             │
    │   │ pop  → remove from stack top          │
    │   │ SP points to next free slot           │
    │   │-------------------------------------- │
    │   │  ← Stack base (256)                   │
    │   │  [Return address]                     │
    │   │  [Saved LCL, ARG, THIS, THAT]         │
    │   │  [Local variables local 0..n]         │
    │   │  [Working stack / evaluation values]  │
    │   │-------------------------------------- │
    │   ↓                                       │
    │                                           │
    │ 2048–16383 : Heap / arrays / objects      │
    │                                           │
    │ 16384–24575 : Screen memory map           │
    │ 24576–32767 : Keyboard input              │
    └───────────────────────────────────────────┘

VM Notes

• The VM provides portability by hiding the Hack memory details.
• SP management ensures correct push/pop order.
• Always use unique labels for comparisons and calls.
• ROM addresses are just sequential instruction numbers; label declarations don’t consume addresses, they alias the next instruction’s line number.
• call: push return address and segment pointers, then jump to function.
• return: restore caller frame, reposition SP, and jump back to return address.
• No constant in pop operation.

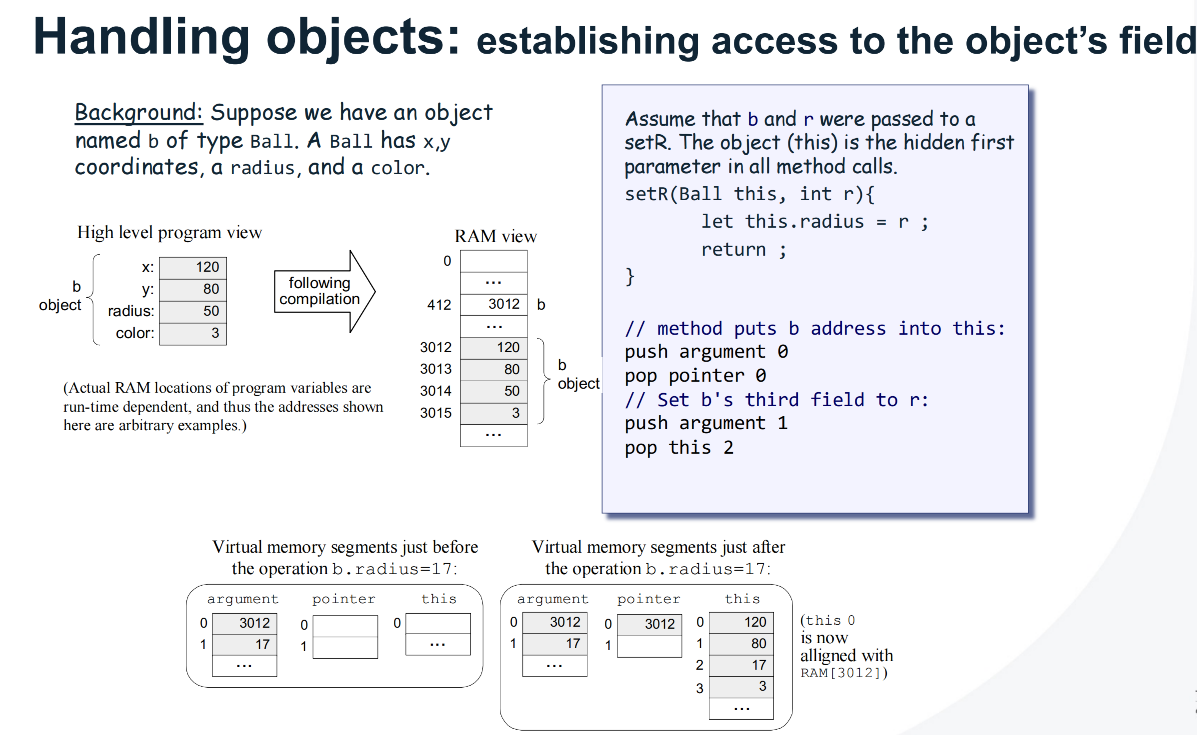

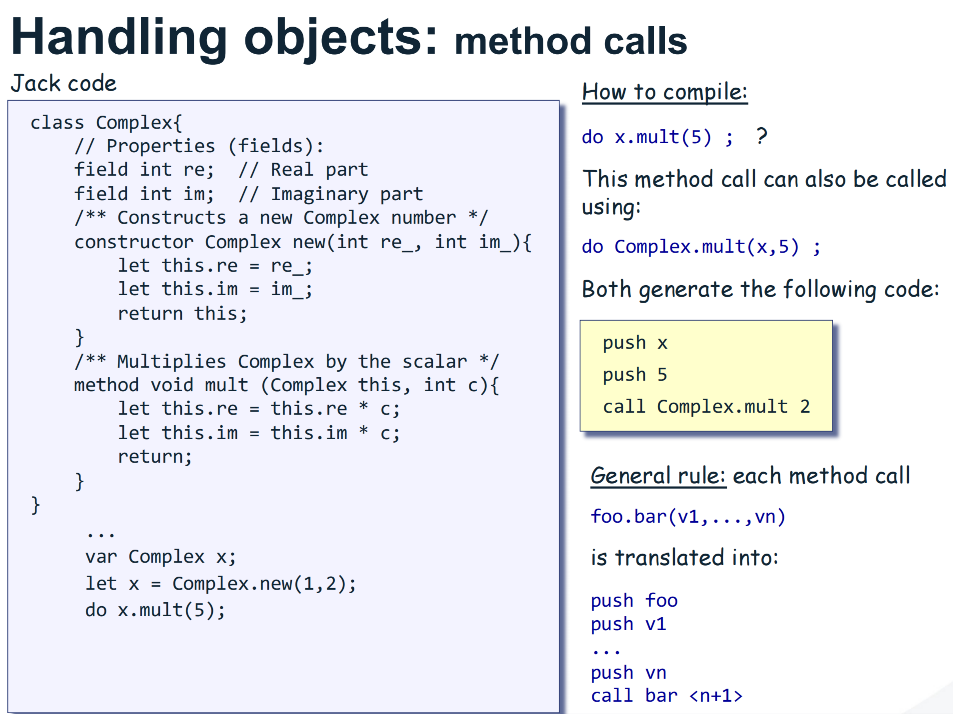

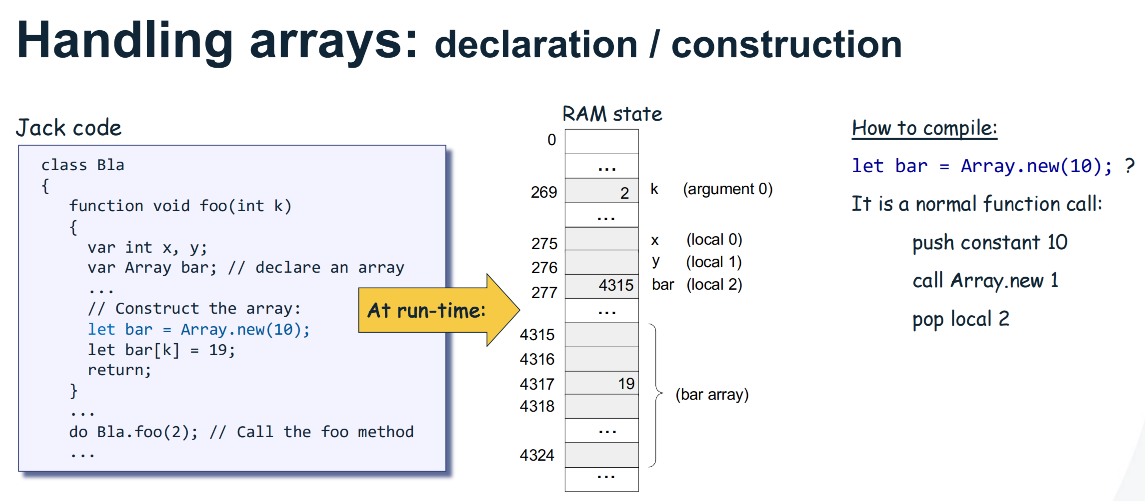

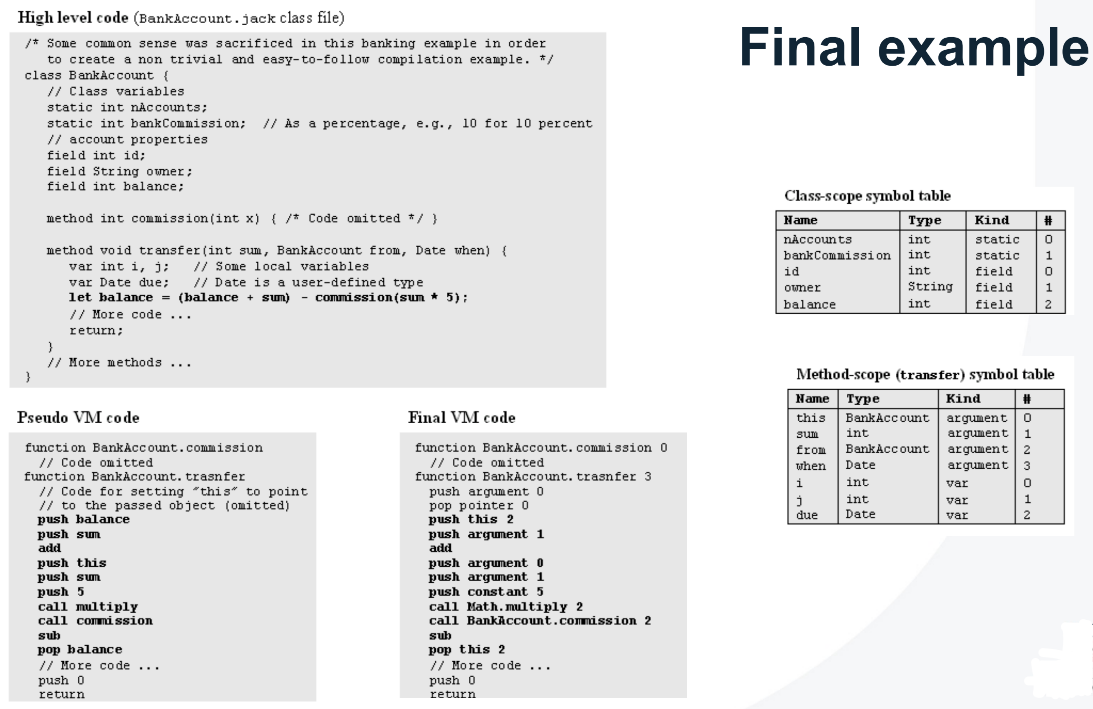

High-Level Language (Jack)

Jack source compiles to VM commands, VM maps to Hack assembly.

Segment Mapping

Jack variable kind	VM segment	Notes
static	static	Per class file scope
field	this	Base in pointer 0
var, local	local	Subroutine private
argument	argument	Call site provided
array base	this or local or argument	Depends on declaration

Subroutine Kinds

Jack subroutine	VM header	Entry actions
function	function ClassName.func k	No implicit this
method	function ClassName.method k	push argument 0, pop pointer 0
constructor	function ClassName.new k	push constant fieldCount, call Memory.alloc 1, pop pointer 0

Statements, minimal templates

1. let x = expr

   ... code for expr
   pop segment index        // x


2. let a[i] = expr

   ... code for a
   ... code for i
   add
   ... code for expr
   pop temp 0
   pop pointer 1
   push temp 0
   pop that 0


3. y = a[i]

   ... code for a
   ... code for i
   add
   pop pointer 1
   push that 0
   ... assign to y via pop segment index


4. do subCall(args)

   ... push object ref if method call
   ... push args
   call QualName nArgs
   pop temp 0               // discard return


5. if (cond) { S1 } else { S2 }

   ... code for cond
   if-goto IF_TRUE$n
   goto IF_FALSE$n
   label IF_TRUE$n
   ... S1
   goto IF_END$n
   label IF_FALSE$n
   ... S2
   label IF_END$n


6. while (cond) { S }

   label WHILE_EXP$n
   ... code for cond
   not
   if-goto WHILE_END$n
   ... S
   goto WHILE_EXP$n
   label WHILE_END$n


7. return, return expr

   push constant 0          // void
   return


   ... code for expr
   return


Expressions, operators

Jack	VM expansion
- x	neg
not x	not
x + y	add
x − y	sub
x & y	and
x | y	or
x < y	lt
x > y	gt
x = y	eq
x * y	call Math.multiply 2
x / y	call Math.divide 2

Literals and keywords

Jack	VM
integer n	push constant n
true	push constant 0, not
false, null	push constant 0
this	push pointer 0

String literal “abc”

push constant 3
call String.new 1
push constant 97
call String.appendChar 2
push constant 98
call String.appendChar 2
push constant 99
call String.appendChar 2

Length first, then append each code point.

Calls, qualification

Jack form	VM call name	Arg0 rule
obj.m(a,b)	ClassName.m	push obj reference then a,b
Class.f(a,b)	Class.f	no implicit object
m(a,b) inside a method	ClassName.m	push pointer 0 then a,b

Label policy

Use per subroutine counters, labels must be unique per function, for example IF_TRUE$n, WHILE_END$n.

Code Generation

Handling Objects

Handling Arrays

Example
